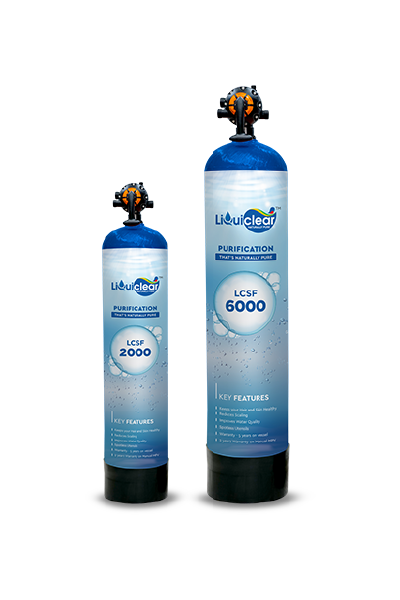

Resin Based Water Softener

(Auto/Manual)

A high level of calcium and magnesium present in water could have a drastic impact on your health, hair, and skin. Installing a water softener system helps you maintain the quality of the water and lower the calcium and magnesium levels.

Liquiclear is the leading hard water softener system provider in India. We have the finest range of automatic and manual water softening systems that control the hardness levels in water.

Liquiclear’s resin-based water softener, also known as an ion exchange water softener, works by employing a process called ion exchange to remove hardness and minerals, primarily calcium and magnesium, from water.

Book Free Demo

How it works

Resin Tank

The water softener system consists of a resin tank filled with tiny resin beads. These beads are typically made of a polystyrene matrix that has been chemically modified to possess negatively charged functional groups.

Ion Exchange Process

When hard water flows into the resin tank, the calcium and magnesium ions in the water are attracted to the negatively charged resin beads. The resin beads have a higher affinity for these hardness ions compared to other ions present in the water.

Ion Replacement

As the hard water passes through the resin bed, the calcium and magnesium ions attach to the resin beads, displacing the sodium or potassium ions that were initially present on the resin.

Softened Water Output

The water that exits the resin tank is now “softened” as the majority of the calcium and magnesium ions have been replaced by sodium or potassium ions. This soft water is then distributed throughout the plumbing system for various household uses.

Regeneration

Over time, the resin beads become saturated with calcium and magnesium ions, and the system needs to be regenerated to restore its ion exchange capacity. This is typically done by flushing the resin bed with a concentrated salt solution known as brine. The brine solution contains a high concentration of sodium or potassium ions, which are more strongly attracted to the resin beads than the calcium and magnesium ions. The brine solution displaces the hardness ions from the resin, and the wastewater containing the removed hardness minerals is flushed out of the system.

Resin Recharge

After the regeneration process, the resin bed is rinsed to remove excess brine and is ready to start the ion exchange process again. The water softener system resumes its operation of exchanging hardness ions with sodium or potassium ions, ensuring a continuous supply of softened water.

Advantages of a Resin-Based Water Softener

Removes harsh minerals

Our water softening system effectively extracts excessively harsh minerals, enhancing water quality through ion exchange.

Reduces Scaling

It gives you freedom from scaling and stains.

Prevents Pipe Choking

Our water softener treats hard water and balances the chemical composition of the water, resulting in choke-free pipes.

Reduces water and detergent consumption

Minimises the usage of water, soap, and detergents.

Improves water quality

Refines the quality of water by removing harmful contaminants from it.

Spotless Utensils

No more cloudy appearances on your utensils, as our Water softener removes the minerals before they can build up on your utensils.

Suitable for multiple applications

The softened water from our system is ideal for diverse uses, including dishwashing, laundry, cooking, and even industrial processes

Residential and Commercial Efficacy

Negates hard water issues like pipe scaling, and soap inefficiency, making an ideal system for both residential and commercial setting.

Extends the life of your appliances

Our water softeners remove corrosive elements, thereby extending appliance durability and making them a perfect addition to any setting

Keeps Your Hair and Skin Healthy

The refined quality of water helps keep your skin healthy and your hair shiny.

Warranty

Get a 5-year warranty from the date of purchase

Book Free Demo

It’s important to note that resin-based water softeners require the periodic addition of salt or potassium pellets to the system to enable the regeneration process. This ensures that the resin beads can effectively remove hard minerals from the water.

Resin-based water softeners are widely used in residential and commercial settings to alleviate the negative effects of hard water, such as scale buildup on pipes and appliances, reduced soap efficiency, and rough-feeling skin and hair.

Technical Specifications

LCSFA2000S

Feature	Description
FRP Vessel Size	10″x54″
MPV Automatic	25 NB Top Mount
Resin	LIQUION 250
Resin Quantity	25 Ltr
Brine Tank	80 Ltr
Resin Exchange Capacity	60
Disk Sediment Filter (Free)	1″
OBR on 300 PPM Hardness	5000 Ltr*
Salt Requirement For Regeneration	4 Kg
Salt Quality	Tablet Salt
Regeneration Period at OBR	3 Days

LCSFA2000

Feature	Description
FRP Vessel Size	10″x54″
MPV Automatic	25 NB Top Mount
Resin	LIQUION 250
Resin Quantity	50 Ltr
Brine Tank	80 Ltr
Resin Exchange Capacity	60
Disk Sediment Filter (Free)	1″
OBR on 300 PPM Hardness	10000 Ltr*
Salt Requirement For Regeneration	8 Kg
Salt Quality	Tablet Salt
Regeneration Period at OBR	5 Days

LCSFA3000S

Feature	Description
FRP Vessel Size	13″ X 54″
MPV Automatic	25 NB Top Mount
Resin	LIQUION 250
Resin Quantity	50 Ltr
Brine Tank	80 Ltr
Resin Exchange Capacity	60
Disk Sediment Filter (Free)	1″
OBR on 300 PPM Hardness	1000 Ltr*
Salt Requirement For Regeneration	8 Kg
Salt Quality	Tablet Salt
Regeneration Period at OBR	4 Days

LCSFA3000

Feature	Description
FRP Vessel Size	13″x54″
MPV Automatic	25 NB Top Mount
Resin	LIQUION 250
Resin Quantity	100 Ltr
Brine Tank	80 Ltr
Resin Exchange Capacity	60
Disk Sediment Filter (Free)	1″
OBR on 300 PPM Hardness	20000 Ltr*
Salt Requirement For Regeneration	16 Kg
Salt Quality	Tablet Salt
Regeneration Period at OBR	7 Days

LCSFA8000S

Feature	Description
FRP Vessel Size	16″x65″
MPV Automatic	40 NB Top Mount
Resin	LIQUION 250
Resin Quantity	125 Ltr
Brine Tank	120 Ltr
Resin Exchange Capacity	60
Disk Sediment Filter (Free)	1.5″
OBR on 300 PPM Hardness	25000 Ltr*
Salt Requirement For Regeneration	20 Kg
Salt Quality	Tablet Salt
Regeneration Period at OBR	4 Days

LCSFA8000

Feature	Description
FRP Vessel Size	16″x65″
MPV Automatic	40 NB Top Mount
Resin	LIQUION 250
Resin Quantity	175 Ltr
Brine Tank	120 Ltr
Resin Exchange Capacity	60
Disk Sediment Filter (Free)	1.5″
OBR on 300 PPM Hardness	35000 Ltr*
Salt Requirement For Regeneration	28 Kg
Salt Quality	Tablet Salt
Regeneration Period at OBR	6 Days

LCSFAP 3000s**

Feature	Description
FRP Vessel Size	13″×54″
MPV Automatic	25 NB Top Mount
Resin	LIQUION 250
Resin Quantity	50 Ltr
Brine Tank	100 Ltr
Resin Exchange Capacity	60
Disk Sediment Filter (Free)	1”
OBR on 300 PPM Hardness	10000 Ltr*
Salt Requirement For Regeneration	8Kg
Salt Quality	Tablet Salt
Regeneration Period at OBR	4 Days

LCSFAP 3000**

Feature	Description
FRP Vessel Size	13″×54″
MPV Automatic	25 NM Top Mount
Resin	LIQUION 250
Resin Quantity	100Ltr
Brine Tank	100 Ltr
Resin Exchange Capacity	60
Disk Sediment Filter (Free)	1”
OBR on 300 PPM Hardness	20000 Ltr*
Salt Requirement For Regeneration	16Kg
Salt Quality	Tablet Salt
Regeneration Period at OBR	7 Days

LCSFAP 6000**

Feature	Description
FRP Vessel Size	16” x 65”
MPV Automatic	25 NB Top Mount
Resin	LIQUION 250
Resin Quantity	125Ltr
Brine Tank	100Ltr
Resin Exchange Capacity	60
Disk Sediment Filter (Free)	1”
OBR on 300 PPM Hardness	25000 Ltr*
Salt Requirement For Regeneration	20Kg
Salt Quality	Tablet Salt
Regeneration Period at OBR	4 Days

LCSF 2000

FRP Vessel Size	10″ X 54″
MPV Manual	25 NB Top Mount
Resin Type	Liquion 250
Resin Quantity	50 Ltr
Brine Tank	80 Ltr
Resin Exchange Capacity	60
Piping	1″
OBR on 300 PPM Hardness	1000 Ltr
Salt Requirement for Regeneration	8 Kg
Salt Quality (Recommended)	Tablet Salt
Regeneration Period at OBR	5 Days

LCSF 3000s

Feature	Description
FRP Vessel Size	13″×54″
MPV Automatic	25 NM Top Mount
Resin	LIQUION 250
Resin Quantity	50Ltr
Brine Tank	80 Ltr
Resin Exchange Capacity	60
Disk Sediment Filter (Free)	1”
OBR on 300 PPM Hardness	1000 Ltr*
Salt Requirement For Regeneration	8Kg
Salt Quality	Tablet Salt
Regeneration Period at OBR	4 Days

LCSF 3000

Feature	Description
FRP Vessel Size	13” x 54”
MPV Automatic	25 NB Top Mount
Resin	LIQUION 250
Resin Quantity	100Ltr
Brine Tank	80Ltr
Resin Exchange Capacity	60
Disk Sediment Filter (Free)	1”
OBR on 300 PPM Hardness	2000 Ltr*
Salt Requirement For Regeneration	16Kg
Salt Quality	Tablet Salt
Regeneration Period at OBR	7 Days

LCSF 6000s

FRP Vessel Size	16″ X 65″
MPV Manual	40 NB Top & Center Mount
Resin Type	Liquion 250
Resin Quantity	125 Ltr
Brine Tank	120 Ltr
Resin Exchange Capacity	60
Piping	1.5″
OBR on 300 PPM Hardness	25000 Ltr
Salt Requirement for Regeneration	20 Kg
Salt Quality (Recommended)	Tablet Salt
Regeneration Period at OBR	4 Days

LCSF 6000

Feature	Description
FRP Vessel Size	16″ X 65″
MPV Automatic	40 NB Top & Center Mount
Resin	Liquion 250
Resin Quantity	175 Ltr
Brine Tank	120 Ltr
Resin Exchange Capacity	60
Disk Sediment Filter (Free)	1.5”
OBR on 300 PPM Hardness	35000 Ltr*
Salt Requirement For Regeneration	28Kg
Salt Quality	Tablet Salt
Regeneration Period at OBR	6 Days

LCSF 9000

Feature	Description
FRP Vessel Size	21″ x 62″
MPV Automatic	40 NB Top & Center Mount
Resin	LIQUION 250
Resin Quantity	300Ltr
Brine Tank	120Ltr
Resin Exchange Capacity	60
Disk Sediment Filter (Free)	1.5”
OBR on 300 PPM Hardness	60000 Ltr*
Salt Requirement For Regeneration	48Kg
Salt Quality	Tablet Salt
Regeneration Period at OBR	7 Days
