A sand filter is a commonly used filtration system in homes and other settings for water treatment purposes. It is primarily used to remove suspended particles, debris, sediment, and turbidity from water.
Discover the Applications of Sand Filters
Pre-Treatment for Other Systems
Sand filters are often used as a pre-treatment step for other water treatment systems. For example, in a multi-stage filtration setup, a sand filter can be employed as the initial step to remove larger particles before the water passes through finer filters or treatment units.
Well Water Treatment
In areas where the water source is a private well, sand filters are commonly used to treat the well water. Well water can contain higher levels of sediment and particulate matter, and a sand filter helps remove these impurities before the water enters the household.
Swimming Pool Filtration
Sand filters are also commonly used in swimming pool filtration systems. The filter traps debris, dirt, and other contaminants present in the pool water, keeping it clean and clear. Regular maintenance and backwashing of the sand filter are necessary for proper pool maintenance.
Advantages of a Sand Filter
Suspended Solids-Free Water
Experience water that is free from suspended solids.
Continuous Water Flow
Enjoy an uninterrupted flow of water, providing convenience and reliability.
Built to Last
Our Sand Filters are designed with durability in mind, ensuring long-term performance.
Convenient Upgradation
Sand Filters are easy to service, thereby ensuring convenient upgrades.
Sediment Removal
Efficiently captures sediments and clarifies water by removing visible impurities and cloudiness.
Improved Water Clarity
Enhances water clarity and appearance by removing sediments and suspended particles.
Protection for Plumbing and Appliances
Safeguards appliances by preventing sediment buildup, enhancing efficiency, and extending their lifespan.

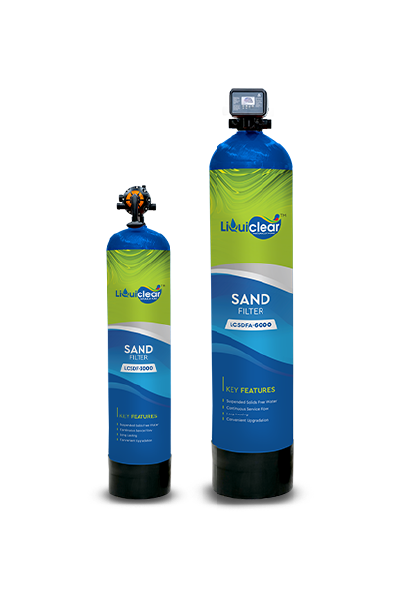

Technical Specifications
LCSDF-3000
| Feature | Description |
|---|---|
| FRP Vessel Size | 13″×54″ |
| Multiport Valve Type | Manual |
| Multiport Valve Size & Mounting | 25 NB Top Mount |
| Silex Media (in KG) | 25 |
| Coarse Sand Media (in KG) | 25 |
| Fine Sand Media (in KG) | 50 |
| Activation Media | Only Backwash |
| Maximum Flow (Ltrs/Hr) | 3000 |
| Maximum Operating Pressure | 3.5 Bar |
LCSDF-6000
| Feature | Description |
|---|---|
| FRP Vessel Size | 16” x 65” |
| Multiport Valve Type | Manual |
| Multiport Valve Size & Mounting | 40 NB Top Mount |
| Silex Media (in KG) | 50 |
| Coarse Sand Media (in KG) | 50 |
| Fine Sand Media (in KG) | 50 |
| Activation Media | Only Backwash |
| Maximum Flow (Ltrs/Hr) | 6000 |
| Maximum Operating Pressure | 3.5 Bar |
LCSDFA-3000
| Feature | Description |
|---|---|
| FRP Vessel Size | 13″×54″ |
| Multiport Valve Type | Automatic |
| Multiport Valve Size & Mounting | 25 NB Top Mount |
| Silex Media (in KG) | 25 |
| Coarse Sand Media (in KG) | 25 |
| Fine Sand Media (in KG) | 50 |
| Activation Media | Only Backwash |
| Maximum Flow (Ltrs/Hr) | 3000 |
| Maximum Operating Pressure | 3.5 Bar |
LCSDFA-6000
| Feature | Description |
|---|---|
| FRP Vessel Size | 16” x 65” |
| Multiport Valve Type | Automatic |
| Multiport Valve Size & Mounting | 40 NB Top Mount |
| Silex Media (in KG) | 50 |
| Coarse Sand Media (in KG) | 50 |
| Fine Sand Media (in KG) | 50 |
| Activation Media | Only Backwash |
| Maximum Flow (Ltrs/Hr) | 6000 |
| Maximum Operating Pressure | 3.5 Bar |
